AA5059 is a high-magnesium, non-heat-treatable aluminum alloy used when a tank truck needs higher strength, good weldability, and strong resistance to corrosion. For transport tanks, every kilogram saved in the tank body can be converted into payload, fuel savings, or better operating flexibility. This is why aluminum alloy tank trucks are widely used for fuel, chemicals, food-grade liquids, cement powder, and other bulk transport applications.

Compared with carbon steel, aluminum reduces tare weight and naturally forms a protective oxide film. Compared with some common 5xxx alloys, AA5059 offers a higher strength level, especially useful for large-volume tanks, pressure-assisted structures, or fleets that want lighter vehicles without sacrificing safety margins. It is often considered alongside 5083, 5454, 5182, and 5754, depending on cargo type, welding design, temperature, and certification requirements.

What AA5059 Brings to Tank Truck Design

AA5059 belongs to the Al-Mg-Mn-Zr alloy family. It is not strengthened by heat treatment; instead, its strength comes from alloy chemistry and work hardening. Magnesium improves strength and corrosion resistance, manganese supports grain structure, and zirconium helps refine the microstructure during rolling. Exact composition and properties should always be checked against the applicable standard and the mill test certificate.

Typical standards used for aluminum sheet and plate include ASTM B209, EN 485, and EN 573. Tank design may also be affected by local transport regulations, pressure vessel rules, ADR requirements, or customer specifications. Material approval should be confirmed by the tank designer and the certification body before production.

For projects focused on high strength and lightweight tank shells, Aluminum 5059 is often evaluated when 5083 or 5454 cannot meet the desired weight target. However, alloy selection is not only about tensile strength. Cargo compatibility, forming radius, welding filler, road conditions, cleaning chemicals, and service temperature all matter.

Common Plate Choices and Processing

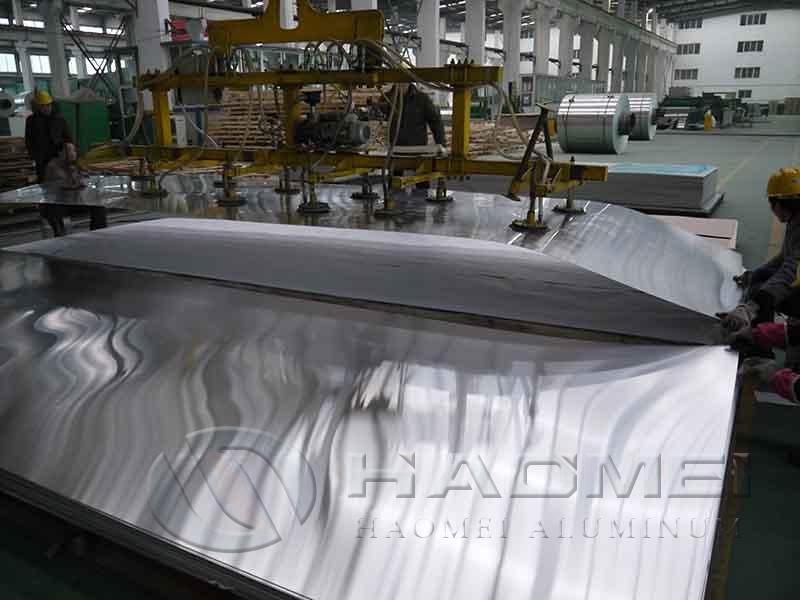

Tank truck manufacturers rarely use one alloy for all models. Fuel tankers, chemical tanks, powder tanks, and cryogenic support vehicles may require different combinations of strength, corrosion resistance, and forming performance. AA5059 is strong, while 5454 is frequently used where good corrosion resistance and thermal stability are important. When elevated-temperature fuel or chemical service is a priority, Aluminum 5454 may be compared during material selection.

The plate production route affects final performance. A reliable mill controls casting, homogenization, scalping, hot rolling, cold rolling if required, annealing, stretching or leveling, surface inspection, and mechanical testing. For tank use, thickness tolerance and flatness are not minor details. Uneven plate thickness may affect rolling, welding fit-up, and final tank volume. Poor surface control can lead to extra polishing, welding defects, or coating problems.

Temper is another important purchasing item. H116 and H321 are commonly discussed for marine-grade 5xxx plates because they are associated with controlled corrosion performance, but the correct temper must match the design code and forming method. If deep forming is required for dished heads, the purchaser should confirm bend performance, minimum inner radius, and elongation data before ordering large quantities.

How to Purchase AA5059 Plates with Lower Risk

A professional purchase request should describe the application clearly, not only list alloy and thickness. At minimum, include alloy, temper, standard, thickness, width, length, surface requirement, tolerance class, quantity, packing method, and delivery schedule. If plates will be used for certified tank production, request original mill test certificates and traceable heat numbers.

Price comparison should be based on total usable value. A cheaper plate may become expensive if it has poor flatness, wide thickness variation, surface scratches, or incomplete documents. For tank factories, these issues can slow welding, increase rework, or cause inspection delays. Stable supply is also important because tank production depends on matching batches and predictable lead time.

Before signing a large order, request a trial batch or sample plate for rolling, cutting, bending, and welding tests. Check whether the plate cracks at the designed forming radius, whether weld appearance is stable, and whether the finished part meets dimensional requirements. For chemical or food-grade tanks, confirm compatibility with cargo and cleaning media through recognized engineering references and the tank owner's specification.

Market prices for AA5059 plate are influenced by primary aluminum prices, magnesium cost, energy prices, rolling capacity, freight, and certification workload. High-magnesium alloys can be more sensitive to raw material and process control costs than standard body sheet. A realistic purchasing plan should allow time for production, testing, export documentation, and shipment, especially for wide or thick plates that require dedicated rolling schedules.

For long-term fleet programs, it is wise to lock technical specifications first, then negotiate commercial terms. A clear specification helps the mill quote accurately and prevents disputes over temper, tolerance, or inspection scope. In tank truck manufacturing, the right AA5059 sheet is not simply the strongest plate available; it is the material that matches the tank design, cargo service, fabrication method, compliance path, and delivery plan.
